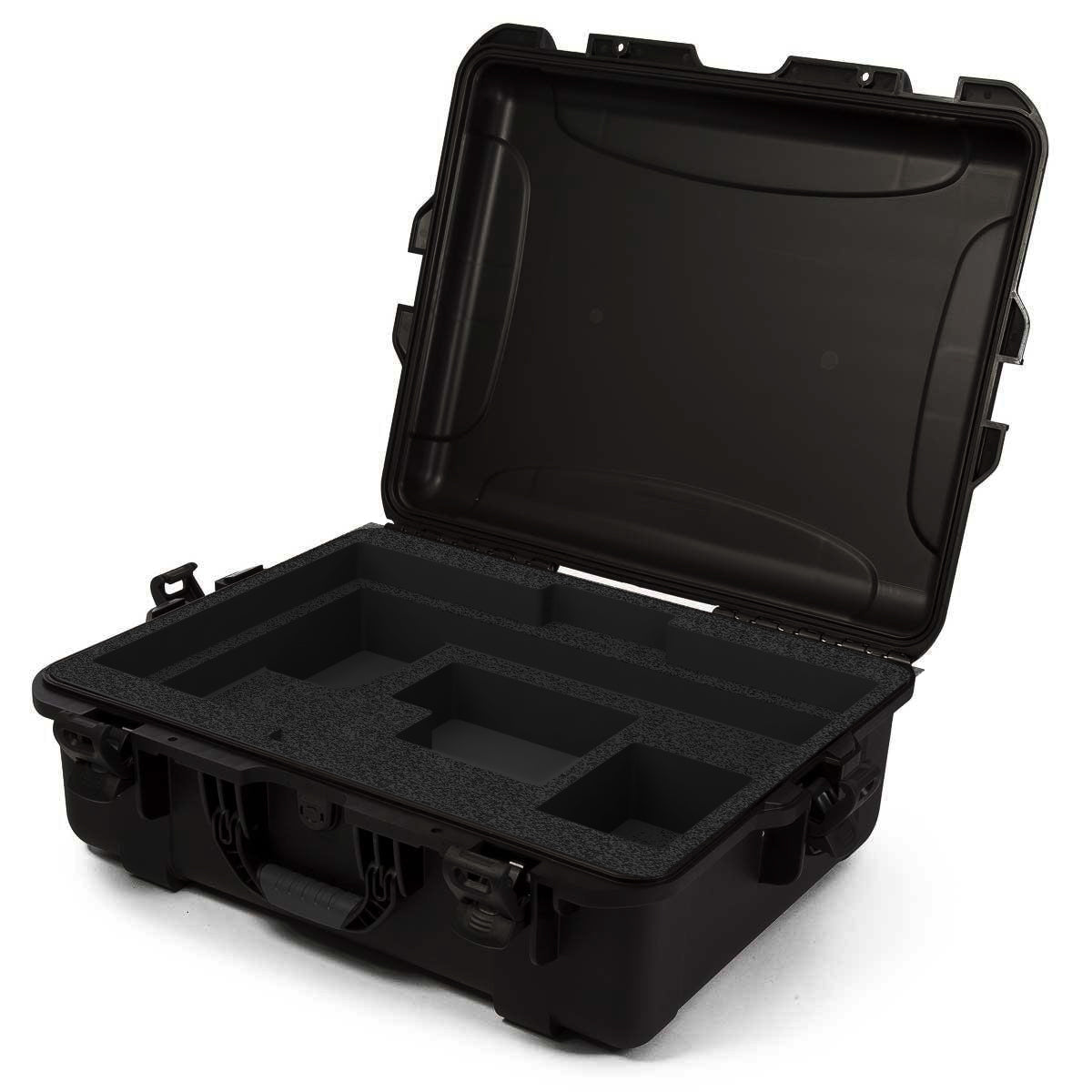

Flanders Scientific Monitor 21" - DESIGN B

Exterior Size (LxWxH)

25.1 in x 19.9 in x 8.8 in638 mm x 505 mm x 224 mm

Interior Size (LxWxH)

22 in x 17 in x 8.2 in559 mm x 432 mm x 208 mm

Volume

50.2 L

Weight (Empty)

10.6 lb | 4.8 kg

Lid Depth

2.1 in | 53 mm

Base Depth

6.1 in | 155 mm

Temperature Range

Min -20°F (-29°C ) | Max 140°F (60°C)

Max Buoyancy

120 lb | 54.4 kg

Padlock Holes

0.3 in | 7.62 mm

Material

Lightweight NK-7 resin

Warranty

Lifetime warranty & 30-day satisfaction warranty

Airline Carry On

No

• 945 NANUK 2D Drawing (PDF)
• 945 NANUK Spec Sheet fr (PDF)
• 945 ALUMINIUM BEZEL PLATE DXF (ZIP)
• 945 LEXAN BEZEL PLATE DXF (ZIP)
• 945 NANUK Cubed Foam DXF (ZIP)
• 945 NANUK Custom Foam DXF (ZIP)
• 945 NANUK INNER SURFS parasolid (ZIP)
• 945 NANUK padded divider (PDF)
• 945 NANUK Spec Sheet (PDF)
• 945 ALUMINIUM BEZEL PLATE (PDF)
• 945 LEXAN BEZEL PLATE (PDF)
• 945 NANUK Cubed Foam (PDF)
• 945 NANUK Custom Foam (PDF)
• 945 NANUK INNER SURFS IGES (ZIP)
• 945 NANUK INNER SURFS Step (ZIP)
• 945 NANUK Printing Template (PDF)
